Machine Spotlight: Rotary Filling Machines

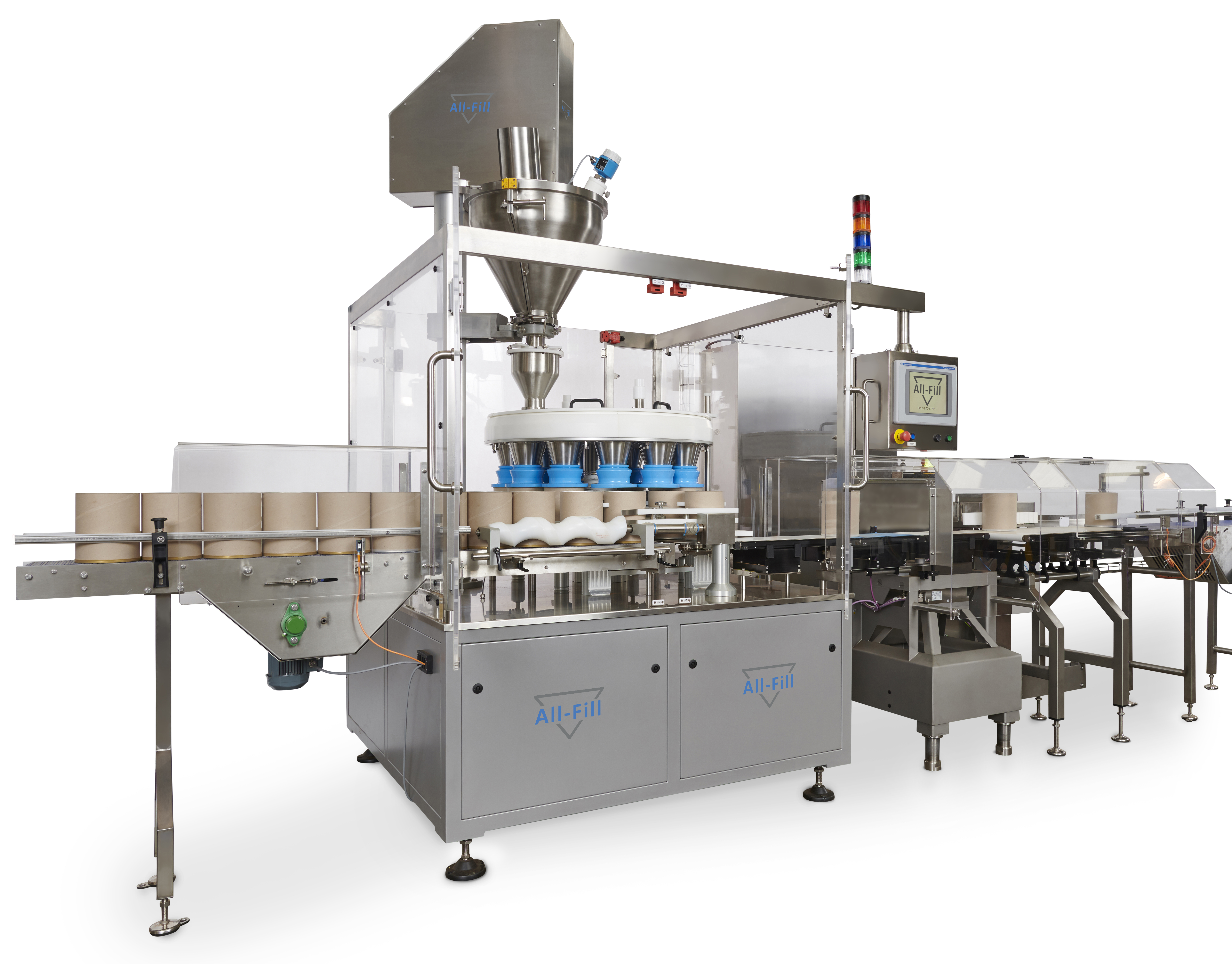

All-Fill’s continuous motion rotary fillers offer high-speed, high accuracy filling for a wide variety of powders and granules.
With turret sizes from 500mm PCD to 2m carrying 12 to 48 transfer funnels, production output up to 400 containers per minute can be reached. One, two, three and four filling head configurations are available, dependent upon the size of container neck opening and powder flow characteristics.
All-Fill’s Continuous Motion Rotary systems fill exceptionally cleanly. The powder is progressed from the client’s bulk feed system into the container via a completely sealed turret. The fillers can be
offered with fully integrated check-weighing and reject systems, together with full feedback to the filling head. The fill weight performance of the filling machine can be displayed
in ‘real-time’ graphical form on the touch-screen HMI.
All powder contact parts are recess-free for easy cleaning and can be removed and re-assembled speedily without the use of tools. Containers handling parts are quick-release and colour-coded for super-fast changeovers.
Standard Features:
* Quick-release, no-tools changeover
* FDA approved silicone “flex-seals”
* Auger machined from solid
* All stainless steel contact parts
* Turret jogging system
* Servo-driven auger
* Servo-driven main turret
* Independent agitation drive
* Fully enclosed dust retention and extraction system
* PLC control via touch-screen panel
Options:
* 1 to 4 filling heads
* 12 to 48 transfer funnels
* Vibration or pulsed air technology
* Check-weigher or laser level feedback
* Integrated tare-and-gross weighing
* Piano reject system
* Lean-Clean 56 Litre Split Hopper
* Hopper Level Probe
* Bulk Feed Accessories
* Full stainless-steel specification
* 316L stainless steel contact parts 10 Sack Filler has been specifically designed to accommodate a wide range of sack and bag sizes. The high-resolution digital strain-gauge load cell provides the signal for filling to stop, eliminating inaccuracies caused by products of inconsistent density. An electro-pneumatic clamp with easy-location presentation guides allows the operator to quickly place the sack/bag beneath the nozzle ready for filling.
Standard features:
* Fully integrated load cell
* Electro-pneumatic sack clamp
* All stainless-steel contact parts
* 56 litre stainless steel hopper
* No-tools removable change parts
* Servo-driven auger
* Independent agitation drive
* PLC control via touch-screen panel
* Bag/sack sizes from 1kg to 25kg
Options:
* Two-speed bulk fill and top-up filling process
* Bulk fill and feed forward
* Multi-stage filling
* 56 Litre Lean-Clean split hopper
* Mobile base
* 316L contact parts
* Single and twin acting flap valves
* Hopper level probe
* Bulk feed accessories
* Active feedback software to minimise give-away
* Printer/interface port
* Roller conveyor
To learn more please get in touch with our team of experts by contacting us any time
